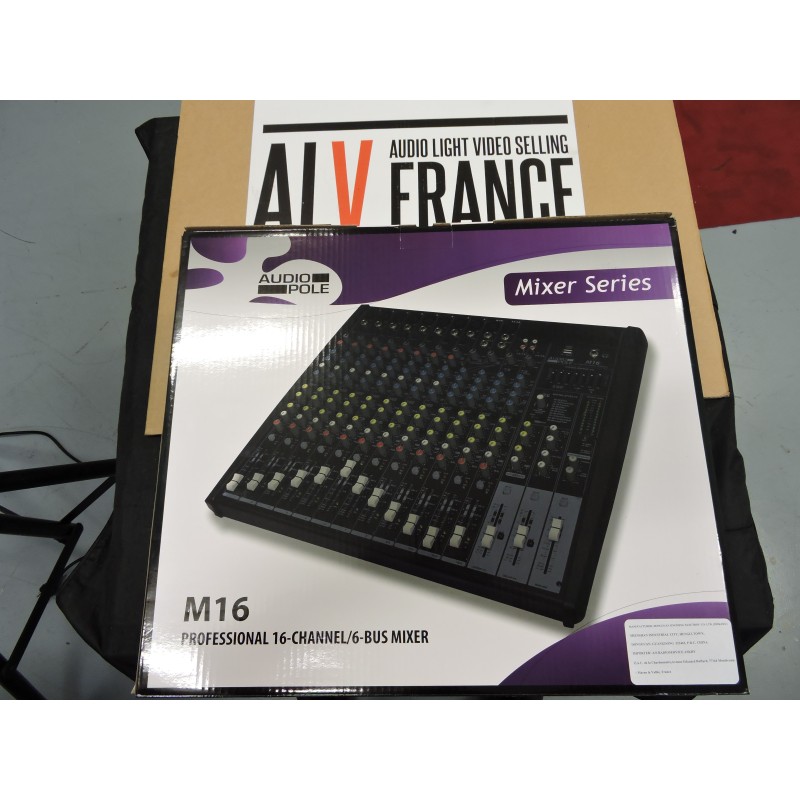

M16 AUDIOPOLE CONSOLE

The M16 is a 12/16 channel mixing console, equipped with a 24-bit digital effects processor, a USB bus (stereo send from the master, stereo return on channels 13/14) and an equalizer 7 tapes on the master. It is a tool particularly adapted for the live mixing, event, of sources in fixed installations.

The M16 has 8 mono mic / line inputs with compressors (1 XLR and 1 6.35mm stereo jack), 2 stereo mono / line mic inputs (1 XLR and 2 6.35mm stereo jack) plus 2 stereo line inputs ( RCA).
It also offers at output: 1 stereo master (balanced XLR doubled as unbalanced 6.35 mm jack), 2 stereo group (6.35 mm jack balanced / unbalanced), 4 auxiliary mono (6.35 mm jack balanced / unbalanced), a "control room" (6.35 mm jack balanced / unbalanced), 1 auxiliary "DFX effect" (6.35 mm jack balanced / unbalanced).

It incorporates very low noise preamps with a gain range of 60 dB. It is equipped with a 48V Phantom power supply for the use of electret microphones.

The microphone / line channels are equipped with XLR connectors, and / or balanced / unbalanced 6.35 mm jack and / or unbalanced RCA for the connection of devices such as electronic musical instruments or audio players.

The M16's effects processor has 10 0 presets grouped into 10 categories.

Inputs 1 to 8 and 9/ 10 , 11/12 feature:
- An adjustable compressor (Channels 1 to 8 only).
- An “Insert” socket enables connection to external equipment such as equalizer or anti-feedback (Channels 1 to 8 only).
- A low cut (Tracks 1 to 8 only).
- A semi-parametric equalization medium and two bands and serious acute for inputs 1 to 8. In a 4-band equalization, midbass serious, midrange and treble to the inputs 9/ 10 and 11/12 .
- Four auxiliaries, 2 pre-post, 2 post, one of which is sent to the internal effect and to a balanced / unbalanced 6.35 mm jack output.
- From a panoramic.
- From a mute.
- An assignment to groups 1-2 and / or 3-4.

Entrances 13/14 and 15/16 have:
- A 4-band equalization, low-midrange, high-midrange and treble.
- Four auxiliaries, 2 pre-post, 2 post, one of which is sent to the internal effect and to a balanced / unbalanced 6.35 mm jack output.
- From a panoramic.
- From a mute.
- An assignment to groups 1-2 and / or 3-4.

Two separate outputs allow you to independently manage the main mix and monitor cabin or headphone monitoring. These outputs are 6.35mm balanced / unbalanced jack.

Integrated power supply 220-240 V, 50/60 Hz.
