ROGUE1FXB CHAUVET LYRE BEAM A LED

ROGU ER1 FXB CHAUVET BEAM LED

CHAUVET
6194

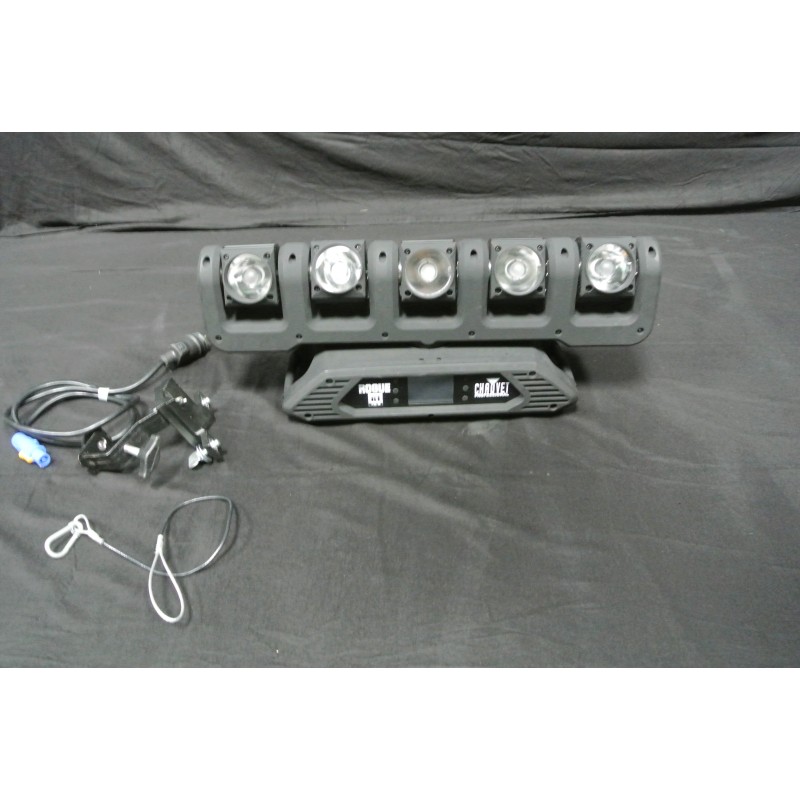

CHAUVET ROGUE R1 FXB

Lyre Beam projector continuous rotation 5 LED

Infinite Pan Tilt Lyre

Comes with accessories and double flight case

Revised and checked

Out of Stock
€690.00
Tax excluded
Request Information
  Checked and tested equipment

All our products are inspected, tested, and checked by our technicians before shipping.

  Fast & secure shipping

Shipping within 24/48h from our warehouse. Delivery in France and internationally.

  Dedicated customer service

A team available to support you before and after your purchase, with personalized advice.

Rogue R1 FX-B

Rogue R1 FX-B shakes things up, five times over. It orchestrates an infinite rotation of both pan and tilt for its five individually controlled heads, powered by five pixel mappable 15 W RGBW LEDs. Crisp beams, a sizzling output and rocket quick movements create amazing aerial effects. Control is achieved with DMX, Art-Net, sACN, or Kling-Net.

AT A GLANCE

  • Fully featured RGBW LED yoke effect beam fixture with pixel mapping

  • 16-bit Dimming of master dimmer as well as individual colors for smooth control of fades

  • Built in color and tilt macros for quick design possibilities

  • Continuous movement of pan and tilt functions

  • Individual control of all five heads for movement and output

  • Quiet operation for a wide range of installation situations

  • DMX, sACN, Art-Net, and Kling-Net control for full flexibility

  • 6.2° beam angle to create crisp and defined areal beam effects

  • User selectable PWM frequencies to eliminate camera roll

  • Battery backup display with auto rotate depending on fixture orientation

SPECIFICATIONS

OPTICAL

  • Light Source: 5 LEDs (quad-color RGBW) 15 W, (4 A), 50,000 hours life expectancy
  • Installed Optics: 5°
  • Beam Angle: 6.2°
  • Field Angle: 10.1°
  • Cutoff Angle: 12.7°
  • Lumens - Source: 2,500
  • Lumens - Output: 5,020
  • Illuminance : 6,008 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz


DYNAMIC EFFECTS

  • Pan and Tilt: 540°/540°
  • Pan and Tilt Ranges: Infinite, 540°, 360°, 180° pan/ Infinite, 540°, 270°, 180° tilt
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: No
  • Color Temperature Presets: No
  • Move-in-Black: Yes
  • Dim Curves: 4


CONSTRUCTION / PHYSICAL

  • Dimensions: 25.19 x 7.05 x 9.72 in (640 x 179 x 247 mm)
  • Weight: 24.2 lb (11 kg)
  • Exterior Color: BLACK
  • Housing Material: High-impact flame-retardant polymer


CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)


CONTROL

  • Control Protocol: Art-Net, Kling-Net, DMX, sACN
  • DMX Channels Single Mode: 18, 25, 47 or 52
  • DMX Channels Dual Mode – Function: 9, 17, 23
  • DMX Channels Dual Mode – Pixel: 15 or 20
  • Art-Net Channels Single Mode: 18, 25, 47 or 52
  • Art-Net Channels Dual Mode – Function: 9, 17, 23
  • Art-Net Channels Dual Mode – Pixel: 15 or 20


ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 8 units @ 120 V; 15 units @ 208 V; 16 units @ 230 V
  • Power and Current: 176 W, 1.48 A @ 120 V, 60 Hz
  • Power and Current: 171 W, 0.796 A @ 208 V, 60 Hz
  • Power and Current: 167 W, 0.757 A @ 230 V, 50 Hz


CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, UKCA
  • IP Rating: IP20, dry location


WHAT'S INCLUDED

  • Rogue RX1
  • Edison (Local) plug to Neutrik powerCON
  • Omega bracket with mounting hardware


OPTIONAL ACCESSORIES
