SCENE DIVA
The X15 HiQ is the benchmark L-Acoustics monitor. Impressively powerful, it fits easily into the scenography thanks to its low profile. Its use is made flexible with an angle of 35 ° or 55 ° adjustable by its integrated wedges. Its active design, its low latency preset, its directivity of 40 ° × 60 ° which concentrates the coverage on the artist and allows the musicians to be acoustically isolated from each other are the guarantees of a successful performance. The rugged design of the X15 HiQ allows it on stage to withstand the most energetic of performers. Its 21 kg / 46 lb allows it to be hung or mounted in many cases, occupying a small volume in trucks. Deployment for all applications requiring narrow coverage is made possible by a comprehensive range of accessories. The X15 HiQ has become a staple on the scene.

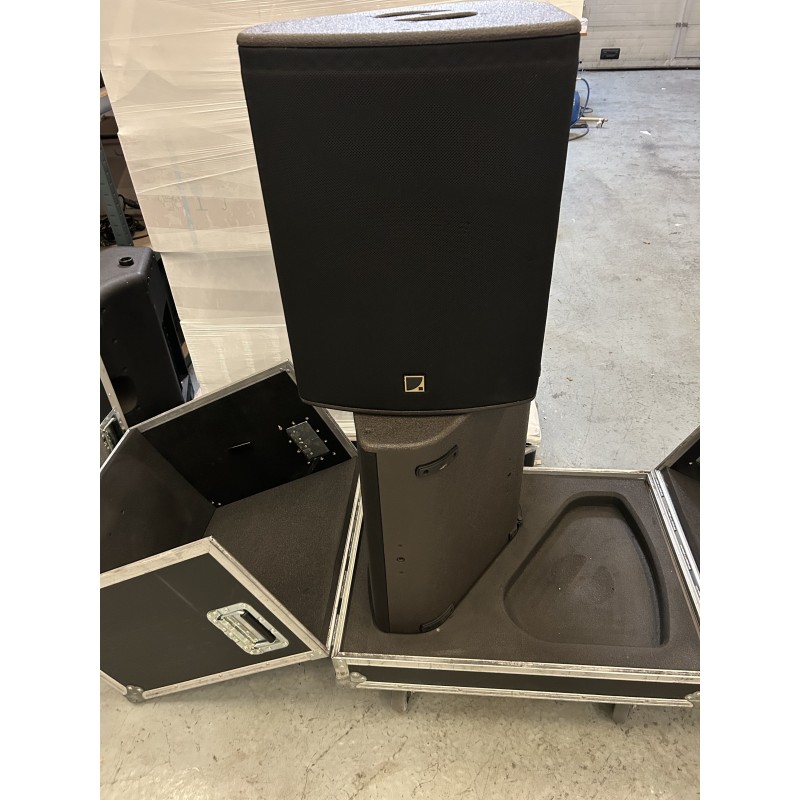

Benchmark monitor: L-acoustics X15 HIQ
- SPL in the coverage area, sound insulation
- High immunity to feedback
- Tight ellipsoid directivity 40 ° x 60 °
- Low profile, low weight, easy integration / handling
- Sturdy construction
- Active design, low latency preset
Indeed, the X15 HIQ loudspeaker is an active coaxial system designed to be a benchmark stage monitor. The X15 HIQ is equipped with a 3 '' diaphragm compression chamber motor co-axially loaded by a 15 '' bass-midrange driver in a bass-reflex cabinet. On the other hand, at a high SPL level, L-Vents laminar vents reduce the effects of turbulence and associated parasitic noise to maximize the efficiency of the bass register of the enclosure.
The X15 HIQ operates on the 55 - 20 kHz band. The coaxial assembly of the loudspeakers associated with an ellipsoid waveguide provides a regular frequency response over the entire coverage of 40 ° x 60 °, without side lobes over the entire passband. Thus, the X15 HIQ exhibits exceptional immunity to feedback.
On the other hand, active filtering is taken care of by amplified controllers which provide frequency filtering functions, time alignment, linearization and component protection.
Specifications of L-acoustics X15 HIQ
2-way active coaxial speaker, amplified by LA4X / LA8
Useful bandwidth (- 10 dB): 55 Hz - 20 kHz (preset [X15])
Maximum SPL : 138 dB (preset [X15])
Nominal directivity: Vertical: 60 ° - Horizontal: 40 °
Monitor angle: 35 ° without raising wedges - 55 ° with raising wedges
Transducers:
- LF: 1 × 15 ″ bass-reflex, laminar vents
- HF: 1 × 3 ″ neodymium compression driver, ellipsoidal waveguide
Nominal Impedance:
Connectors:
- IN: SpeakON ®
- LINK: SpeakON®
Hanging and handling:
- 2 × handles
- M8 threaded insert compatible DIN580
- 4 × thread inserts M 10
- 2 × 35 mm foot bases
Weight (net): 21 kg
Finish: dark gray brown
