GEO S1210 ( 06 x PIECES ) + BUMPER NEXO

Name: GEO S1210 ( 06 x PIECES ) + BUMPER NEXO
Brand: NEXO
SKU: 7786
Price: 10000 EUR
Availability: OutOfStock

Brand : NEXO

Reference : 7786

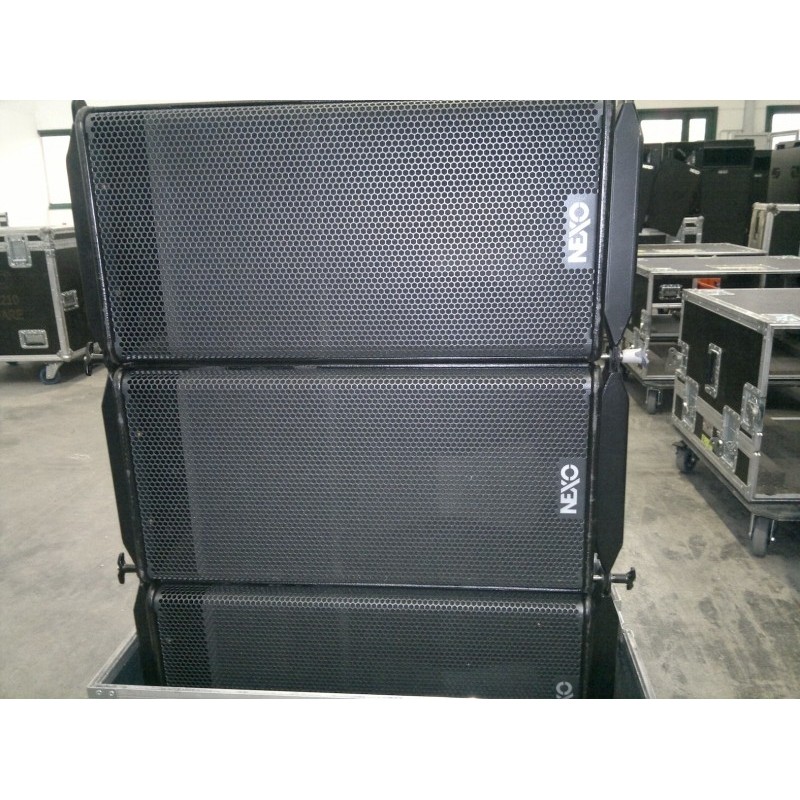

NEXO GEO S1210 + BUMPER

Lot of 06 GEO S1210 enclosure with XBOW

Delivered in flight case of 03 - Flight carpet

+ 02 x GEO S12 Bumpers

Second hand . revised and checked.

Out of Stock

€10,000.00

Tax excluded

Request Information

Checked and tested equipment

All our products are inspected, tested, and checked by our technicians before shipping.

Fast & secure shipping

Shipping within 24/48h from our warehouse. Delivery in France and internationally.

Dedicated customer service

A team available to support you before and after your purchase, with personalized advice.

Guarantee safe checkout – 100% secure payment remotely or on site

GEO S12 10

The compact GEO S12 10 2-way loudspeaker is a module that can be used in small or large configuration, ensuring an exceptional sound pressure level in the bass and midrange (nominal sensitivity: 10 3 dB SPL at 1 m for 1 W) via a single 12 ”speaker (30 cm diameter). It is equipped with the DPD (Directivity Phase Device) phase part, exclusive to NEXO . Used alone, the enclosure has a very narrow vertical directivity ( 10 °). Its exclusive waveguide HRW (Hyperboloid Reflective Wavesource) ensures optimal coupling if you use multiple speakers S12 10 /1230 then they generate a coherent wave front, maintaining precise control of the dispersion of energy in sound vertical or horizontal arrays. S12 arrays provide traditional tight control of directivity in the non-coupling plane.

MAIN FEATURES

Coherent wavefront propagation, thanks to the advanced NEXO waveguide GEO Hyperbolic Wavesource
Advanced Constant Velocity Profile output technology with 5.1 ° wavefront angle
Integrated rigging system, angles adjustable from 0.20 ° to 10 °
Configuration via NS-1 software, EtherSound ™ network compatible

SPECIFICATIONS

Frequency response [a]	53Hz - 19kHz ± 3dB
Useful Band (at -6 dB) [a]	50Hz - 20kHz
Sensitivity (for 1 W at 1 m)	10 3dB nominal SPL
Nominal Peak SPL (at 1 m) [b]	According to configuration [d]
Directivity [c]	In the coupling plan: according to configuration [d] In the non-coupling plane: configurable 80 ° / 120 °
Cutoff frequency	LF- HF: 1.1 kHz, passive or active (internally configurable)
Impedance	16Ω
Recommended amplification
3 x GEO S12 10 in parallel	HF: 875 to 1550 W into 4 Ω, LF: 1750 to 3 10 0 W into 4 Ω
4 x GEO S12 10 in parallel	HF: 10 00 to 1800 W in 4Ω, LF: 2000 to 3600 W in 4 Ω
6 x GEO S12 10 in parallel	HF: 1650 to 3000 W in 2 Ω, LF: 3300 to 6000 W in 2 Ω

CHARACTERISTICS

Components	HF: 1 x voice coil 3 ”, output 1.4”, nominal impedance 16 Ω, loaded by HRW horn 5 °
	MF / LF (front radiation): 1 x 12 ”(30 cm), large travel, neodymium magnet, nominal impedance 16 Ω.
Dimensions	344 x 674 x 378 mm (HxWxD) excluding accessories Center distance: 345 mm
Form	10 ° trapezoidal
Mass	28.05 kg with array assembly
Connectors	2x NL4MP SPEAKON 4 points (In & Through)
Material	Baltic birch plywood, black structured coating
Front finish	Dark gray embossed metal grille
Hanging points	Two plates accommodating the external accessories. Angle between speakers: 0.2 ° / 0.315 ° / 0.5 ° / 0.8 ° / 1.25 ° / 2.0 ° / 3.15 ° / 5.0 ° / 6.3 ° / 8.0 ° / 10 , 0 ° (not logarithmic)
