SR 10 1 TONNE D8 DOUBLE BRAKE VERLINDE

Name: SR 10 1 TONNE D8 DOUBLE BRAKE VERLINDE
Brand: VERLINDE
SKU: 10200
Price: 1500 EUR
Availability: InStock

Brand : VERLINDE

Reference : 10200

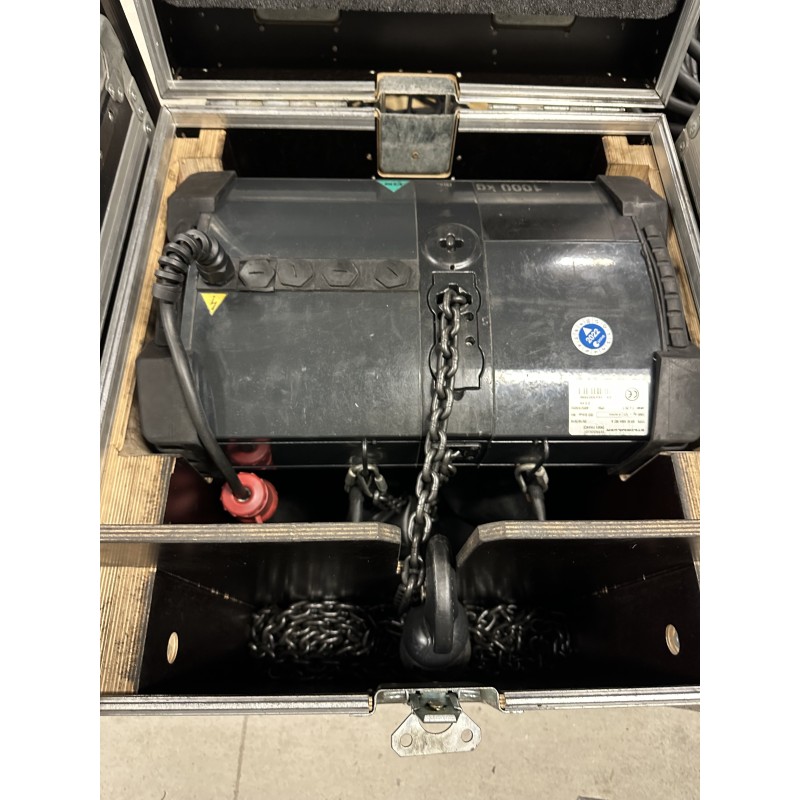

VERLINDE ENGINE 1 TONNE in D8

Double Brake

Motor delivered with a 25 meters galvanized chain

Supplied with chain bag, handles

Attention: Flight solo

Direct voltage by plug: CEE 16A - P17 TRI

Used engine in very good condition

Revised and checked

Hurry! only 4 items left in stock.

€1,500.00

Tax excluded

Request Information

Checked and tested equipment

All our products are inspected, tested, and checked by our technicians before shipping.

Fast & secure shipping

Shipping within 24/48h from our warehouse. Delivery in France and internationally.

Dedicated customer service

A team available to support you before and after your purchase, with personalized advice.

Guarantee safe checkout – 100% secure payment remotely or on site

The LIFTKET is the safest lift motor in the industry. Its double brake, the direct voltage or low voltage option, its limit switches with 2 or 4 internal or external cams, its underload protection system, positioning by encoder, its hooking by rotary hook or directly by an eye … Are just as many options that make the LIFTKET the safest and most versatile motor on the market.

TECHNICAL INFORMATIONS

Charge capacity	10 00 kg (1 ton)
Lifting height (chain length)	20 meters
Lifting speed	4 meters per minute
Number of chain strands	1 strand
Load chain EN 818-7, DAT	black phosphated 7 x 22 mm
Model	?
Mounting position	normal position or inverted hoist
Power supply (connector)	400 V - three phase - 5 Hz (CEE 16/4)
Motor power at 50 Hz	0.75 kW
Mechanism group	1Bm / M3 - FEM / ISO
Starts per hour / max.	150 per hour / 25%
Command type	Direct order
Degree of protection	IP 54
Standard	BGV D8
Color	RAL 9005 matt black
Motor dimensions (lxwxh)	371 mm x 257 mm x 155 mm
Motor weight	27 kg
Lost ribs	288 mm / 370 mm
