ELP730 LIFTING FOOT 300KG - 7M30 ASD

Name: ELP730 LIFTING FOOT 300KG - 7M30 ASD
Brand: GUIL
SKU: 7071
Price: 3900 EUR
Availability: OutOfStock

Brand : GUIL

Reference : 7071

ASD FOOT URC HE ELP 730

Fork feet raised = 300kg

Lifting height = 7.30 m

New equipment. 1 year warranty

Out of Stock

€3,900.00

Tax excluded

Request Information

Checked and tested equipment

All our products are inspected, tested, and checked by our technicians before shipping.

Fast & secure shipping

Shipping within 24/48h from our warehouse. Delivery in France and internationally.

Dedicated customer service

A team available to support you before and after your purchase, with personalized advice.

Guarantee safe checkout – 100% secure payment remotely or on site

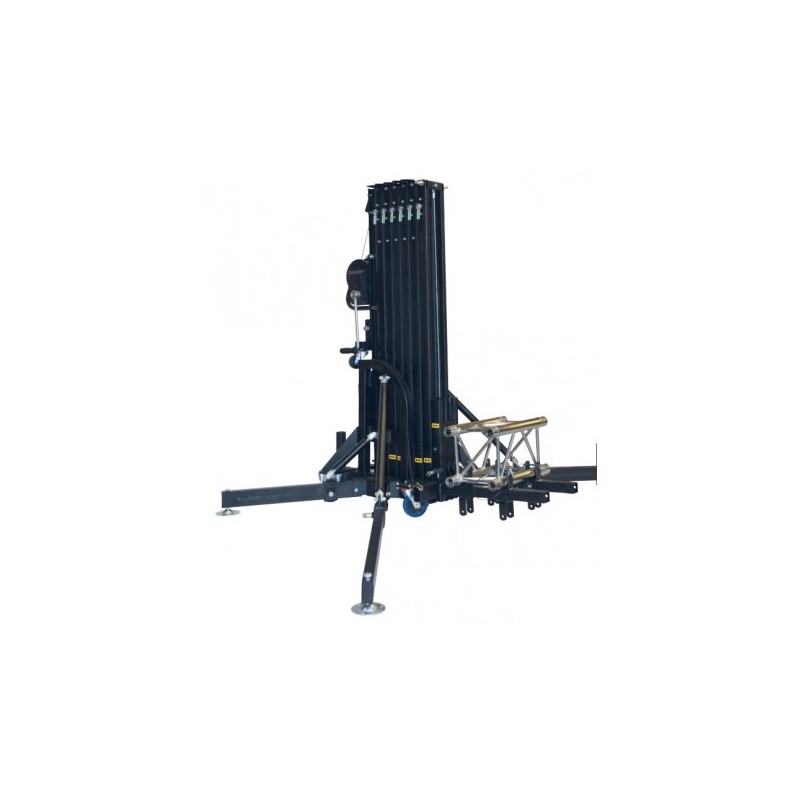

The ELP range corresponds to a new line of lifts, entirely designed and manufactured in France like all ASD products.

Its development perfectly illustrates the know-how accumulated over 20 years in this field, resulting in a unique concept on the market.

The steel base with legs fitted with jacks allowing leveling on any type of terrain incorporates the strengths of the ranges already approved by service providers, such as the ALT 550 or 600 series.

This base has 3 levels for adjusting the flatness with 2 possible uses: inclined for

use line array or straight for grill with structures.

All ultra-resistant extruded and machined aluminum poles receive automatic locks that can be manually unlocked. They are fitted with a latest generation non-return winch with friction brake

Incomparable advantages:

- Folded position of 1.70 m for upright loading in any type of truck

- 4 loading positions / height (minimum 0.20 m)

- Steel base and leg

- Matt extruded aluminum

- Standing or lying transport position

- Ring for guying

- New automatic locking pin on the leg slide

- Completely black anti-reflective epoxy finish

MAXIMUM PERMISSIBLE LOAD 300 kg

USEFUL LOADING HEIGHT
Position 1 0.20 m / 7.00 m
Position 2 0.30 m / 7, 10 m
Position 3 0.40 m / 7.20 m
Position 4 0.50 m / 7.30 m
OVERALL HEIGHT 7.40 m
FLOOR WHEELBASE ø 2.65 m
Front wheelbase at 0.90 m from the axis 2.50 m
Front wheelbase at 0.50 m from the 1.50 m axis
TRANSPORT
Height 1.70 m
Length 0.80 m
Width 0.60 m
Weight 235 kg

Brand GUIL

Reference : 7071

Out of Stock
