UDX-4K32 VIDEO PROJECTOR B ARCO

Name: UDX-4K32 VIDEO PROJECTOR B ARCO
Brand: BARCO
SKU: 8783-2
Price: 32000 EUR
Availability: OutOfStock

Brand : BARCO

Reference : 8783-2

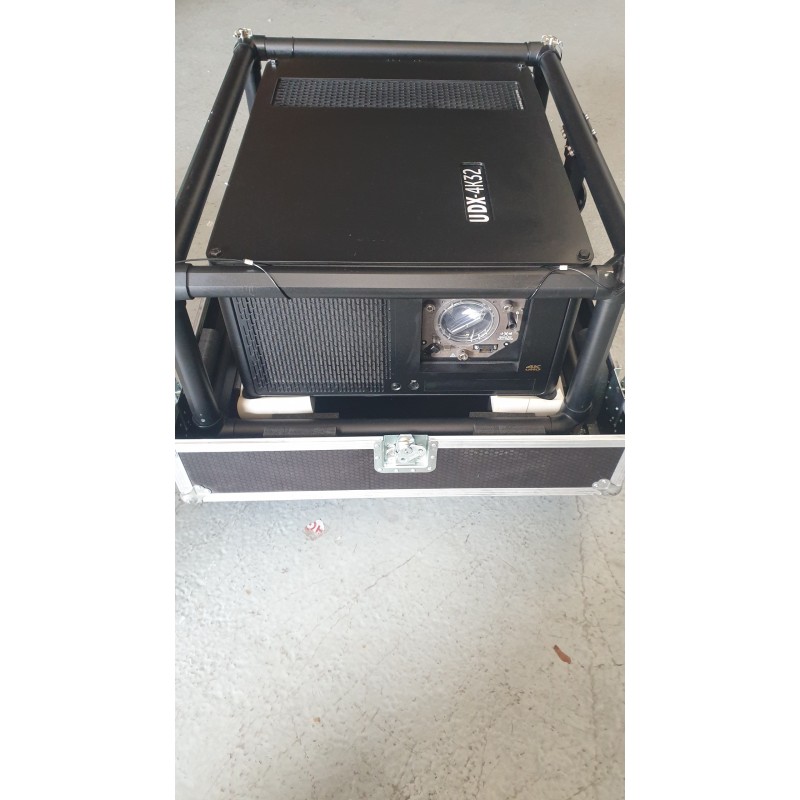

B ARCO VIDEO PROJECTOR UDX 4K32

Video projector 4K 3 10 00 LUMENS -

Comes with cradle and flight case

Delivered without optics (possible as an option)

Revised and controlled material

In a perfect state

Out of Stock

€32,000.00

Tax excluded

Request Information

Checked and tested equipment

All our products are inspected, tested, and checked by our technicians before shipping.

Fast & secure shipping

Shipping within 24/48h from our warehouse. Delivery in France and internationally.

Dedicated customer service

A team available to support you before and after your purchase, with personalized advice.

Guarantee safe checkout – 100% secure payment remotely or on site

31,000 Lumens 31,000 Lumens 4K UHD DLP 3-Chip Laser Phosphor Large Venue Projector

Faster installation, reduced costs, optimal equipment management
Unmatched colors, 4K resolution and best-in-class processing
Incredible experiences through exceptional performance
24/7 operation

Technical characteristics

Projector type	4K UHD 3-Chip DLP Digital Projector
Technology	DMD™ x3 0.9"
Resolution	3840 x 2400 (4K UHD) / 2560 x 1600 (native) / 5120 x 3200 (processed)
Brightness	31,000 (WQ)/30,000 (4K UHD) lumens (center)* // 30,000 (WQ)/29,000 (4K UHD) ANSI lumens // 33,000 ISO
Contrast ratio	Full Field 2200:1 / Barco Dyna Black 20000:1
Brightness uniformity	95%
aspect ratio	16: 10
ScenergiX	Horizontal and vertical edge overlap
Lenses	TLD+ 0.8-1.16:1; 1.25-1.6:1; 1.5-2.0:1; 2.0-2.8:1; 2.8-4.5:1; 4.5-7.5:1; 7.5-11.5:1
Optical lens offset	V: - 10 0 % up to +130 % / H: +/- 40 % on zooms (stored)
Color Correction	P7
Light source	laser phosphor with inorganic phosphor wheel
Light source life	25,000 hours
Optical barndoor	Digital
Picture-by-picture	Two simultaneous sources
Orientation	360°
Sealed DLP™ processor core	standard
DMX-512	standard
WARP	Direct Fit On-Screen Adjustment Menu + Toolset
Image processing	Integrated geometric correction and image overlay
Major fix	Yes
Embedded web server	Yes
CLO (constant light output)	Standard
3D	Glasses active (optional), circular passive (optional), dual flash up to 200 Hz*; Dual Eye Point 240Hz optional
Starters	Single HDBaseT; HDMI 2.0 (HDCP2.2 HDR 10 ); DP 1.2 (HDCP 1.3); Quad 3G/12G SDI / BarcoLink
Optional starters	Quad DP1.2
Input resolutions	NTSC up to 4K (4096x2160)
pixel clock max.	600MHz
Software tools	Projector Toolset + Android App + iOS App
Control	Wired XLR + IR, RS232, Wifi (optional), GSM (optional)
Network connection	10 / 10 0 base-T, RJ-45 connection, WiFi** (optional)
Power supply	120-160 V (reduced supply) / 200-240 V (+/- 10 %), 20A, 50-60Hz
Maximum consumption	2900W nom. / 3 10 0 W max / SLEEP less than 10 W
Sound level (typical at 25°C/77°F)	52dB(A)
Operating ambient temperature	0-40 ° C / 32- 10 4 ° F
Humidity (operation)	0-80 % (non-condensing)
BTU dissipation	Max. 9,895 BTU/hr
Dimensions (LxWxH)	660 x 830 x 350mm / 25.98 x 32.67 x 13.77in
Shipping Dimensions	(W x L x H) 800 x 1,200 x 685 mm / 31.49 x 47.24 x 26.96 in
Weight	92 kg (202 lb) / shipping weight ex factory: 1 10 kg (242 lb)
Standard accessories	Power cord, rugged XLR cable/wireless remote
Certificates	Conforms to UL60950-1 and EN60950-1 standards; Complies with FCC Part 15, Class A and CE EN55032 Class A, RohS
Guarantee	3 years
*	+/- 10 %
