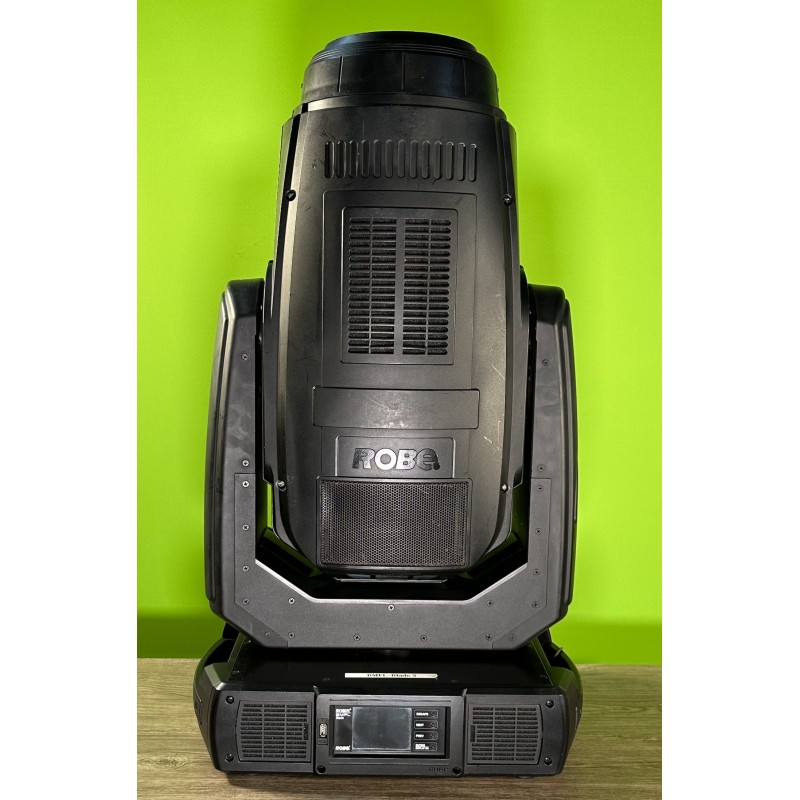

BMFL BLADE LYRE ROBE

Descriptions détaillées

Four fast shutter blades with smooth and precise movement in the new BMFL Blade lighting fixture. Individually angled and positioned within a frame - which itself can rotate through 90 degrees, providing a sharp or soft, precisely repeatable, frame for the projected image.

Producing a new series of fast-moving in-air effects through pre-programmed shape and movement sequences of the blades, gobo images can be trimmed or framed in a regular, triangular or trapezoid shape. Each pair of opposing blades can close to a complete blackout.Two gobo wheels – one rotating with six slot&lock gobo positions plus another with 8 static gobos can be combined with the Animation wheel to create numerous dynamic projected effects.

Add all this to the already acclaimed BMFL features including: exceptionally smooth linear dimming, Imperceptable high definition colour mixing, full width beam, Output in excess of 250,000 lux at 5 metres – and the Robe EMS™ (Electronic Motion Stabiliser) technology, enabling the BMFL™ to both move and stop faster and more precisely than any other fixture in its class - all this housed in a compact body profile weighing just 37,9 Kgs.

• LIGHT SOURCE ??1700 W OSRAM Lok-it! HTI 1700/PS?
• LIGHT OUTPUT ??40.000 lm, 250.000 lx @ 5 m, 2.500 lx @ 50 m?
• ZOOM RANGE ??5° - 55°?
• EFFECTS ??rotating and static gobo wheel, circular and linear prism, framing shutters, animation wheel

SOURCE

• Lamp: Compact short-arc metal halide lamp
• Base: PGJ 28 Lok-it!
• Approved model: Osram Lok-it! HTI 1700/PS
• Lifetime: 750 hours @ 1700 W / 1500 W / Quiet mode
• Colour Temperature: 6.000 K
• CRI: 92+
• Control: Automatic and remote on/off

OPTICAL SYSTEM

• Fixture total lumen output:
• 40.000 lm at 1.700 W
• 36.500 lm at 1.500 W
• 32.000 lm at 1.200 W (Quiet mode)
• 250.000 lx @ 5 m, 2.500 lx @ 50 m
• Dichroic glass reflector for maximising the light efficiency
• Zoom optical system: 11:1
• Beam angle: Zoom range 5°-55°
• Output Lens diameter: 160 mm

ELECTROMECHANICAL EFFECTS

• Cyan: 0-100 %
• Magenta: 0-100 %
• Yellow: 0-100 %
• Variable CTO: 2.700 - 6.000 K
• Colour wheel 1: 6 fixed dichroic colours: deep red, deep blue, orange, green, magenta, congo blue + white
• Colour wheel 2: 6 replaceable "SLOT&LOCK" dichroic colours: pink, lavender, laser green, 9.000 K CTB, minus half and minus green + white
• Framing shutters: 4 individually positionable blades plus rotation of the complete frame system +-45°
• Aluminium Animation Wheel: used alone or in combination with gobos, rotating in both directions at variable speed
• Effects: 6-facet circular and 6-facet linear rotating and indexable prisms
• Rotating Gobo wheel: 6 rotating, indexable, replaceable "SLOT&LOCK" glass gobos + open
• Static Gobo wheel: 8 static, replaceable "SLOT&LOCK" glass gobos + open
• Iris: Motorized, stepless, pulse effects up to 3 Hz
• Frost: Variable Light, Medium and Heavy Frosts
• Dimmer: Optimized dual blade system for exceptional smooth dimming
• Shutter: Separate dual blade system, Variable strobe effect up to 10 Hz, full black out
• Zoom and focus: Motorized
• Pan: 540°
• Tilt: 270°

CONTROL AND PROGRAMMING

• Setting & Addressing: ROBE Navigation System 2 (RNS2)
• Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
• Optional wireless version: CRMX™ technology from Lumen Radio (on request)
• Control channels: 49, 42
• Protocol modes: 2 DMX protocol modes
• Programs: 3 editable, each up to 100 steps
• Stand-alone operation: Yes
• Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning operation memory service, operation memory service log with RTC
• Pan/Tilt resolution: 16 bit
• Movement control: Tracking and vector
• CMY & CTO: 8 bit
• Colour wheel positioning: 8 or 16 bit
• Framing Shutters system: 8 bit
• Rotating Gobo Wheel positioning: 8 bit
• Static Gobo Wheel positioning: 8 bit
• Gobo indexing & rotation: 8 or 16 bit
• Animation Wheel: 8 bit
• Animation wheel rotation: 8 bit
• Iris: 8 or 16 bit
• Frost: 8 bit
• Zoom: 8 or 16 bit
• Focus: 8 or 16 bit
• Dimmer: 8 or 16 bit
• Ethernet port: Art-Net, MA Net, MA Net 2, sACN
• Data in/out: Locking 3-pin & 5-pin XLR
• Power in: Neutrik PowerCon

ROTATING GOBOS

• Gobo wheel: 6x Rotating Glass gobos
• Outside diameter: 30.8 mm
• Image diameter: 25.0 mm
• Thickness: 1.1 mm
• Max. thickness: 3.5 mm

STATIC GOBOS

• Gobo wheel: 8x Static Glass gobos
• Outside diameter: 30.8 mm
• Image diameter: 25.0 mm
• Thickness: 1.1 mm
• Max. thickness: 1.1 mm

FRAMING SHUTTERS SYSTEM

• Blade: 4 Blades, each with separate movement and rotation control
• Movement: Smooth with variable speed, ultrafast blade movements for creating mid-air effects
• Pre-programmed: Shape and blade sequences

THERMAL SPECIFICATION

• Maximum ambient temperature: 45 °C (113 °F)
• Maximum surface temperature: 170 °C (338 °F)

ELECTRICAL SPECIFICATION

• Power supply: Electronic auto-ranging
• Input voltage range: 200-240 V, 50/60 Hz
• Power consumption: 2000 W at 230 V / 50 Hz

RIGGING

• Mounting points: 2 pairs of 1-turn locks
• Universal operating position
• 3 mounting positions: 0°, 32° and 90°
